CR-Type
Clean Room Type
As a multi-axis (3 axes or more) gantry robot utilizing clean-type standard orthographic robots, it minimizes the external exposure of each operational part for each axis and applies a dust filter (FFU) in each friction part to suppress the occurrence of particles.
Robot optimized for product transportation and palletization tasks in clean areas such as semiconductor and secondary battery manufacturing lines
* Currently owns patents for related systems
Characteristics
-
mopCleanliness of the workplace
Exposure of the operational parts is minimized to block particles and noise using patented development technology.
-
airMaintains air cleanliness
Negative pressure exhaust line for pollutant emission is applied to maintain clean air within the site.
-
space_dashboardSpace efficiency
It can be used in various environments without height and space limitations in the workplace.
-
move_selection_upAccommodation for heavy load
Core components for track motions and sliding blocks are applied to perform a buffer function for heavy loads without separate device or equipment.
Standard Measurements and Specifications
| Category | No. 110 | No. 180 | No. 265 | Notes |
|---|---|---|---|---|
| Movable load | 100 kg (Horizontal movement) | 100 kg (Vertical movement) | 140 kg (Vertical movement) | |
| Nominal speed | 2,000mm/sec | 500mm/sec | 500mm/sec | Follows LM company |
| Maximum acceleration | 4,000mm/sec | 2,000mm/sec | 2,000mm/sec | Follows LM company |
| Repeatability | ±0.1mm (Based on belt type) | ±0.02mm (Based on belt type) | ±0.02mm (Based on ball screw) | (Belt type +-0.1) Different if it is a Ball screw (+-0.02) type |
| Maximum stroke | 10mm ~ 10M (Based on belt type) | 10mm ~ 2.5M (Based on ball screw) | 10mm ~ 3M (Based on ball screw) | 110: 10m(Belt) 180: 2.5m(Ball screw) 265: 3m(Ball screw) |

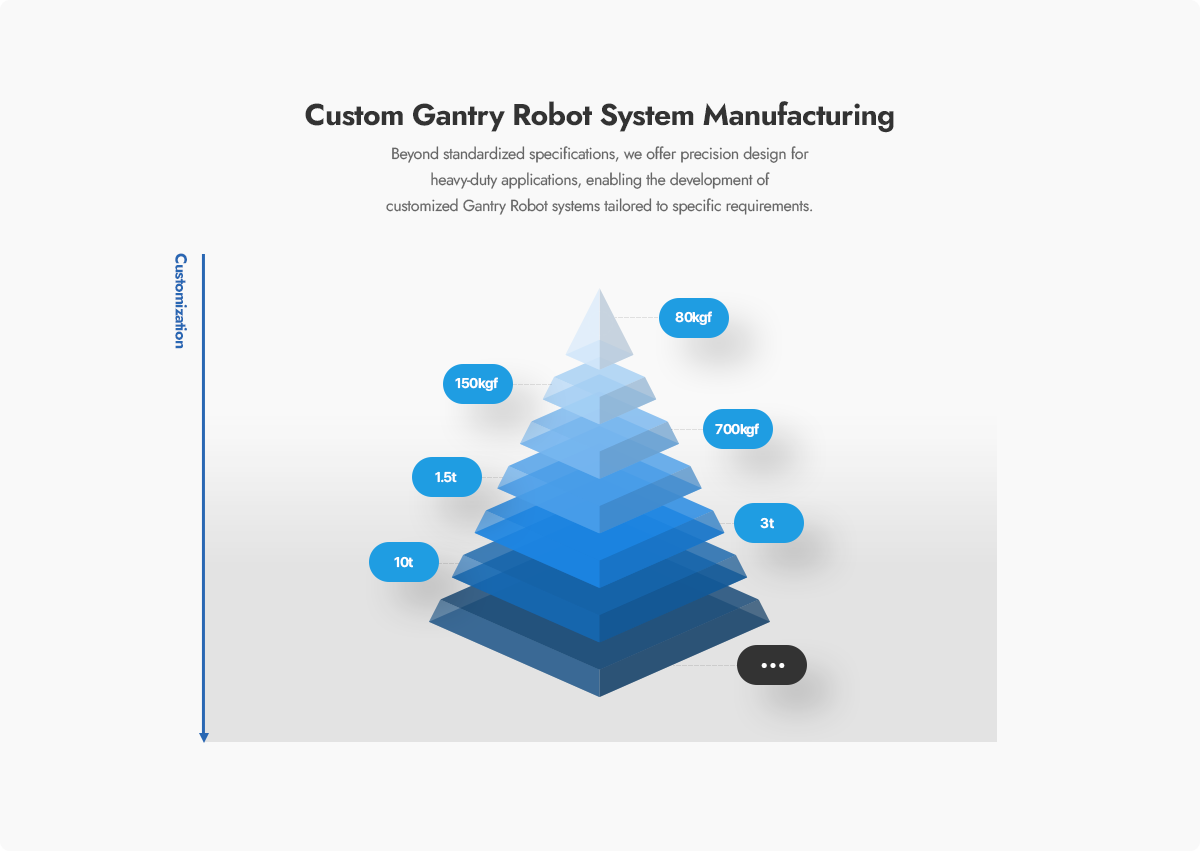

Customizable Gantry Systems
