Track Motion Overhead System
TMS-O
Overhead Type

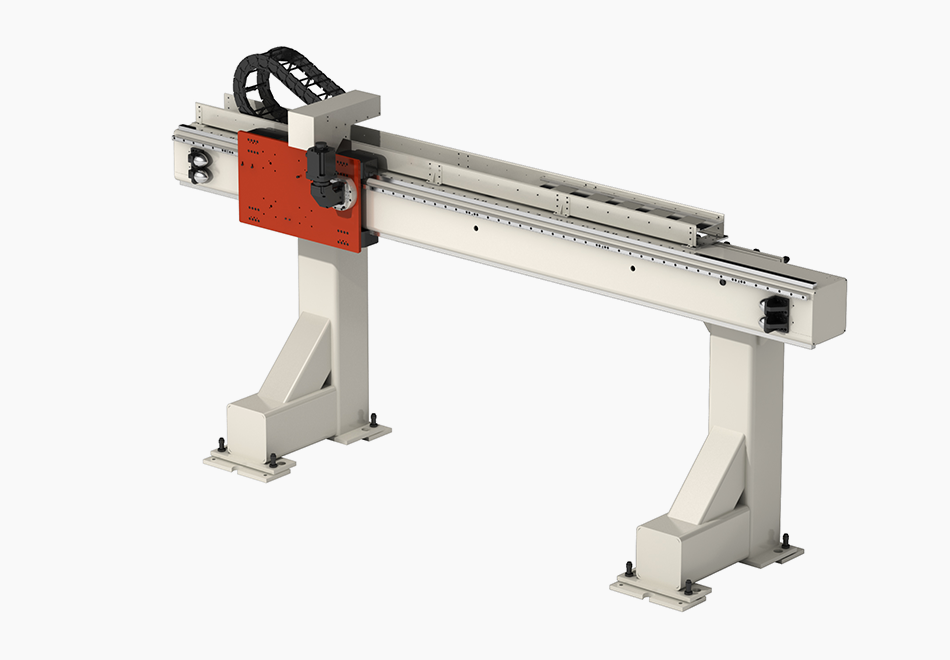

As a linear module that applied roller blocks and guide tracks for heavy weights, it moves industrial multi-joint robots in a straight direction to perform the role of expanding its area of work.
It is installed at the factory ceiling unlike the floor type to retain the existing strengths and the strengths of gantry robots. Can be used in a wider variety of fields.

Inquire Product List
  • Track Motion Overhead System
  • Track Motion Overhead System
1,800 kgf
Maximum effective movable load
1.6 m/s
Nominal speed
Characteristics
  • move_selection_up
    Heavy weight transportation

    Optimized for industrial robot transportation as up to 1,800 kgf heavy load transport is possible.

  • format_letter_spacing
    High expandability

    It is easy to connect as it is modularized in standard length units, having high expandability towards the length direction.

  • verified_user
    High durability

    High-strength roller block and track guides are applied to allow long-term use, has high durability.

  • space_dashboard
    High space efficiency

    Can use the floor space as it can be installed at the factory ceiling like gantry robots

Standard Measurements and Specifications
Category Unit TMS - O1 TMS - O2 TMS - O3
Effective movable load kg 180 400 620 580 790 1,000 900 1,200 1,800
Nominal speed m/s 3.3 2.5 1.6 3.3 2.2 1.6 2.6 2.2 1.6
Maximum acceleration m/s² 8 7 6 4 3 2 4 3 2
Reduction ratio - 3 4 6 4 6 8 5 6 8
Motor speed rpm 3000
Repeatability mm ±0.05
Type 180 620 1,000 1800
TMS - O1
TMS - O2
TMS - O3

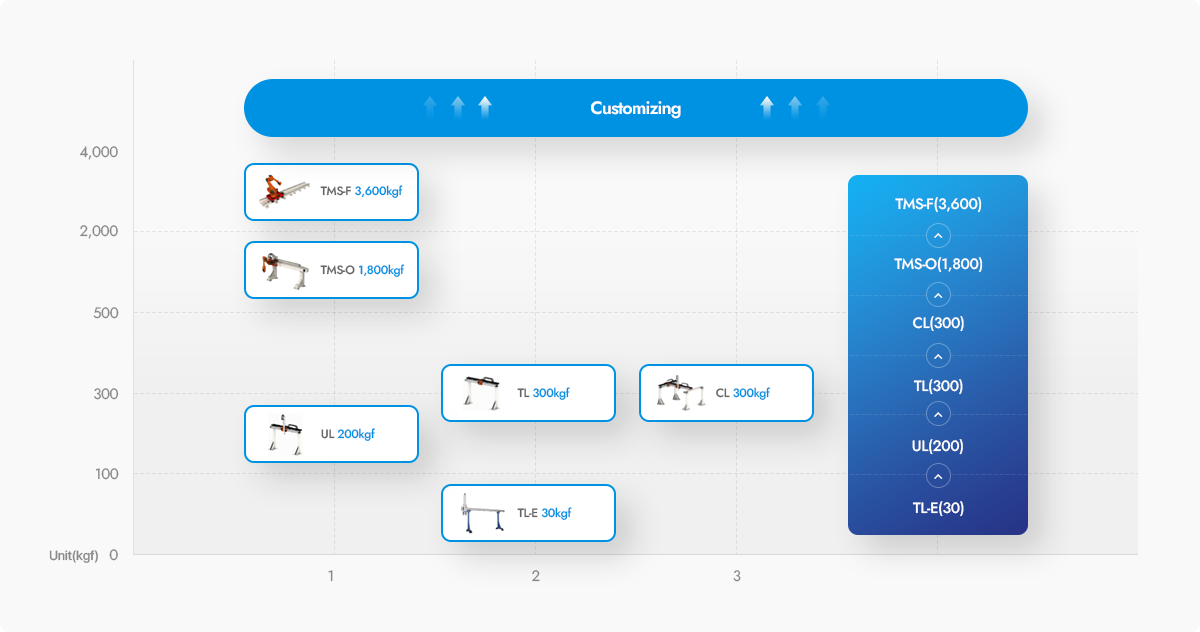

Movable Load for Each Product (kgf)

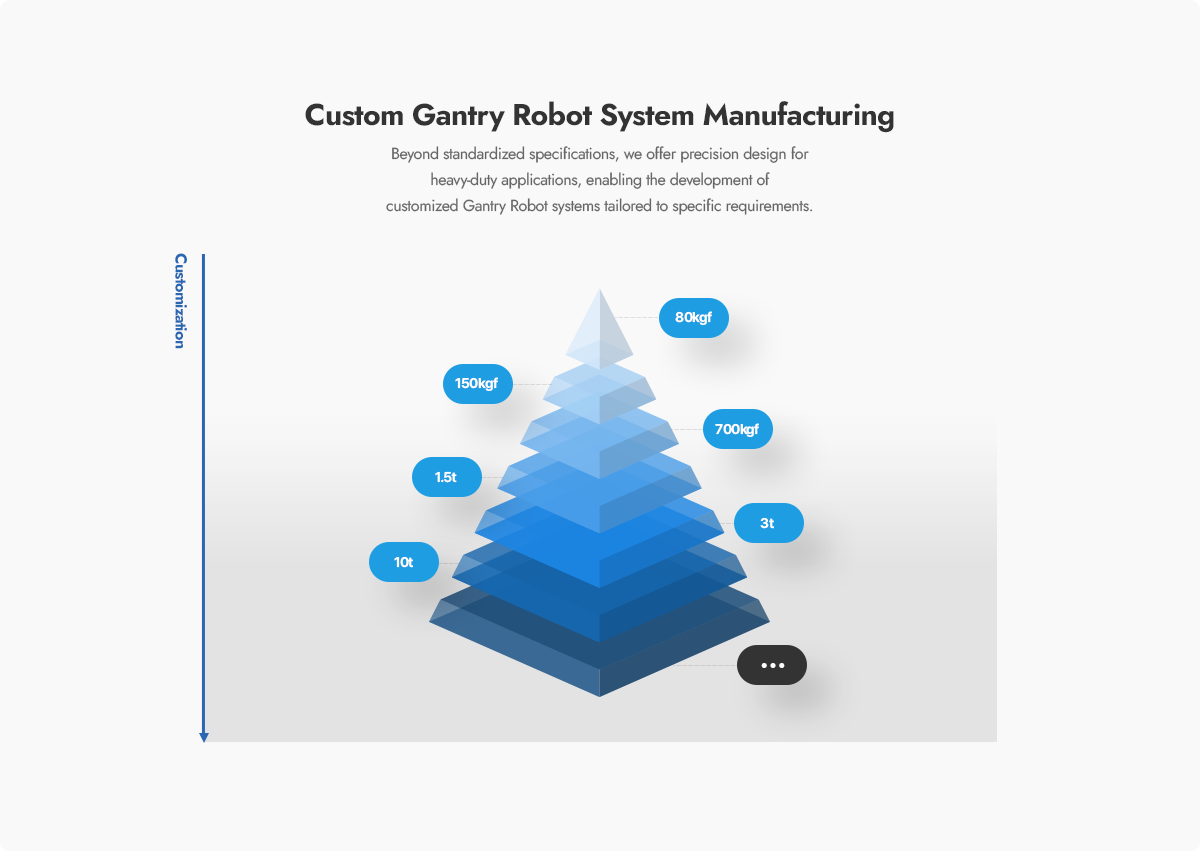

Customizable Gantry Systems



Applied Industries

  • Automobiles

  • Manufacturing

  • Logistics warehouses

  • Foods

  • Construction

  • Shipbuilding

  • Eco-friendly energy

Robot sizing table
MAKER TMS - F1 TMS - F2 TMS - F3
MODEL PAYLOAD WEIGHT MODEL PAYLOAD WEIGHT MODEL PAYLOAD WEIGHT
ABBIRB 260012 kg284 kgIRB 6620LX150 kg610 kgIRB 6620150 kg900 kg
IRB 527 kg250 kgIRB 550013 kg540 kgIRB 58010 kg630 kg
IRB 1406 kg98 kgIRB 240012 kg380 kgIRB 460020 kg435 kg
... ... ...
FANUCM-710iC/70T70 kg410 kgM-710iC/70T70 kg410 kgR-2000iB/200T200 kg1,100 kg
M-710iC/50T50 kg410 kgM-710iC/50T50 kg410 kgM-710iC/70T70 kg410 kg
M-20iA/20T3 kg185 kgM-20iA/20T3 kg185 kgM-710iC/50T50 kg410 kg
... ... ...
HYUNDAIHH020L20 kg535 kgYS140D140 kg590 kg---
HA010W10 kg245 kgHA020W20 kg240 kg---
HA0066 kg155 kgHH02020 kg225 kg---
... ... ...
KAWASAKIRD80N80 kg540 kgKG26420 kg795 kg---
KJ26415 kg530 kgRS80N80 kg555 kg---
RS10L10 kg230 kgRS50N50 kg555 kg---
... ... ...
KUKAKR 16 ARC HW16 kg245 kgKR 60-3 F60 kg880 kgKR 60-3 F60 kg880 kg
KR 16-216 kg235 kgKR 120 R1800 NANO120 kg684 kg---
KR 5 ARC5 kg127 kgKR 60-360 kg665 kg---
... ... ...
NACHINV06L20 kg280 kgMR5050 kg745 kgSRA220HV-01220 kg1,100 kg
NV0610 kg160 kgMC7070 kg640 kg---
MZ077 kg30 kgMC3535 kg640 kg---
... ... ...
