Secondary battery 01
CAP ASS'Y
The part that serves as the cover for the rectangular cell is assembled with
the positive and negative current collectors, along with the safety device part, the vent.
A key safety device that prevents explosions of large-capacity secondary batteries.
Cap Assembly Path
-

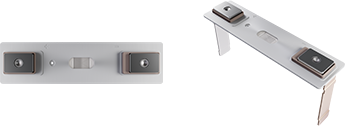

One-way
-

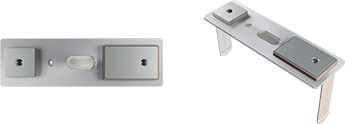

Bi-directional
Production Process

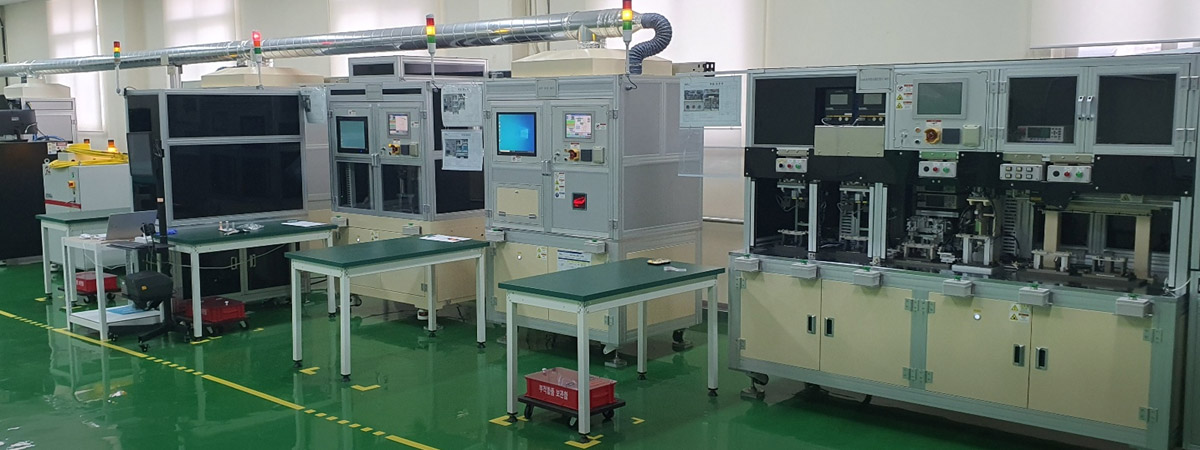

Equipment Photo
-
PILOT LINE
-
RELIABILITY TEST LAB
-
MEASURING ROOM
Secondary battery 02
CAN
A key safety device that prevents explosions of large-capacity secondary batteries.
#1 CAN Line Manufacturing Specifications
| Dimension | Length (mm) | Height (mm) | Thickness (mm) |
|---|---|---|---|
| Max | 180 | 150 | 60 |
#2 CAN Line Manufacturing Specifications
Development of 220mm height is possible.
| Dimension | Length (mm) | Height (mm) | Thickness (mm) |
|---|---|---|---|
| Max | 310 | 216 | 75 |
Production Process
| Process | #1~2 | #3 | #4 | #5 | #7 | #9 | #11 | Side-Cutting |
|---|---|---|---|---|---|---|---|---|
| 1-Blanking & Cup | 2-Drawing | 3-Drawing | 4-Drawing | Trimming | 5-Drawing | 6-Drawing | Flange 제거 | |
| Product |  |
 |
 |
 |
 |
 |
 |
 |

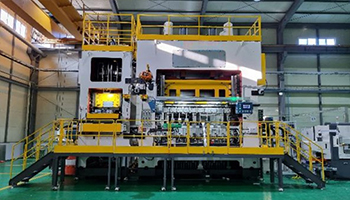

#1 CAN Line
-
300T Press
-

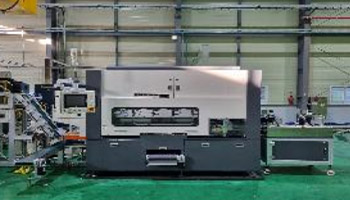

Side Cutting M/C
-

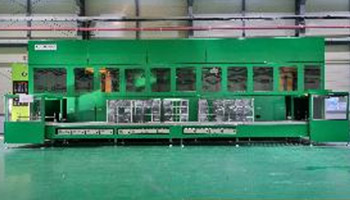

Cleaning M/C
#2 CAN Line Unit 2
Press Unit 2

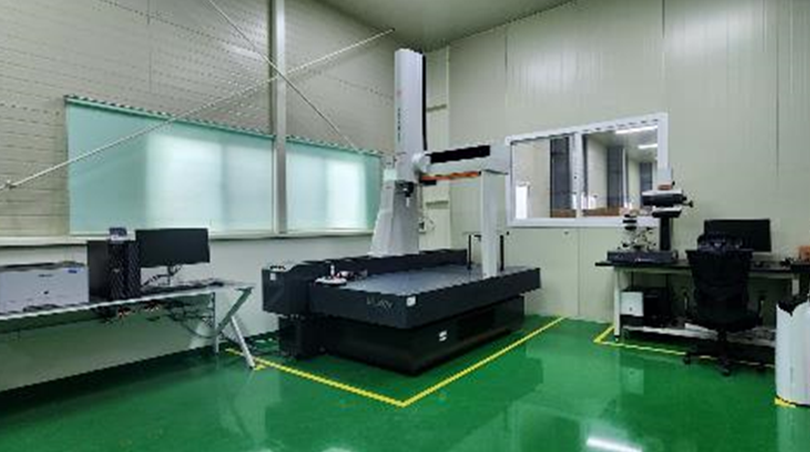

CAN Measurement Room
| Equipment Name | Photo |
|---|---|
| 3D Measuring Machine |
|
| Roughness/Shape Measuring Machine | |
| Surface Plate | |
| Electronic Scale | |
| Vernier Calipers | |
| Height Gauge | |
| External Micrometer Digital | |
| Dial Test Indicator | |
| Digital Micrometer | |
| Step Gauge | |
| Digital Point Micrometer | |
| Vice |
Secondary battery 03
Automotive Parts (Battery Components)
| CLAMP BOTTOM ASS’Y |
END PLATE | BUSBAR POSITIVE |
BUSBAR NEGATIVE |
INTER BUSBAR A |
INTER BUSBAR B |
|---|---|---|---|---|---|
|
|
|
|
|
|
SGARC440 |
SGARC440 |
C1100 |
C1100 |
C1100 |
C1100 |
PLBM (Parking Lithium Battery Module) BRAKET
BRACKET PACK
HEAD LAMP PARTS
SEATING RIM and others
REAR LAMP PARTS
CIRCUIT FRAME and others
